EPAS/OPI

In this article we will guide on how to change the operating mode of the terminal.

Keep in mind: If you're having difficulties, or are unable to change the operating mode, please contact us at support.

PA Version ≥2.0.13	PA Version <2.0.13

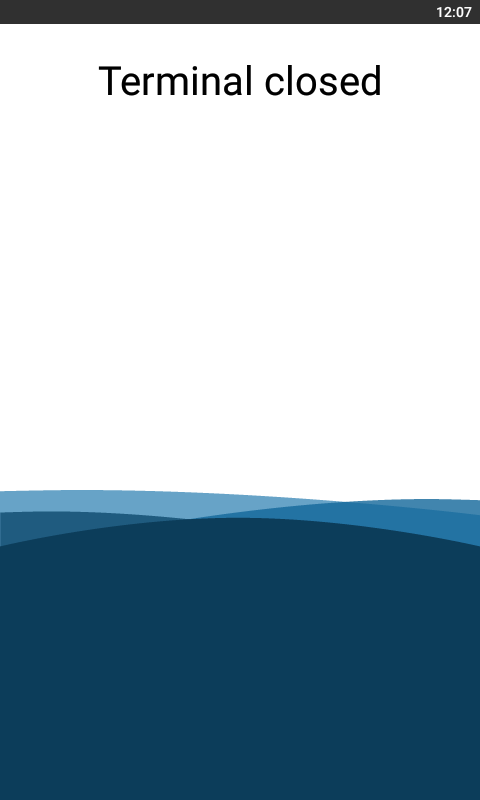

The terminal is in "Welcome" or "Terminal closed" mode. Press `"1 4 7 3 6 9"` on the pin-pad, this will bring you to the System Functions menu.	The terminal is in "Welcome" or "Terminal closed" mode. Press `"1 4 7 3 6 9"` on the pin-pad, this will bring you to the System Functions menu.

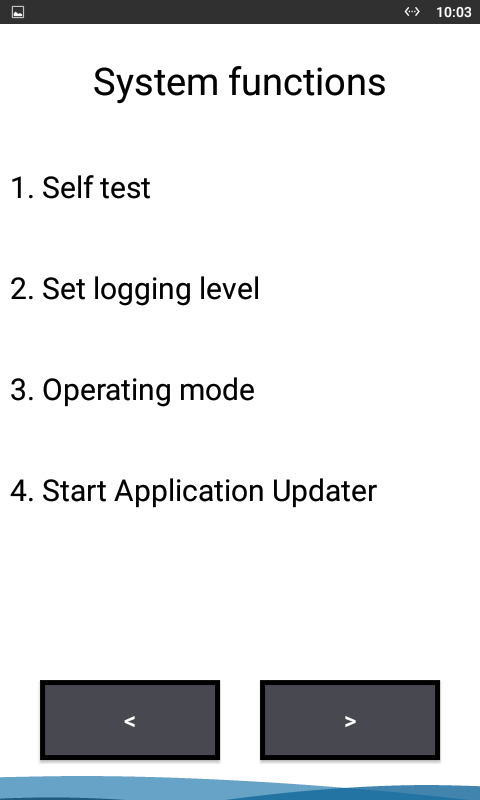

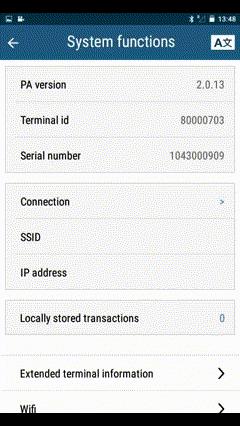

Scroll down to "Terminal settings", and press on it.	In System functions, press on the bottom right arrow [>], until you see "Operating mode". Then, press the corresponding number.

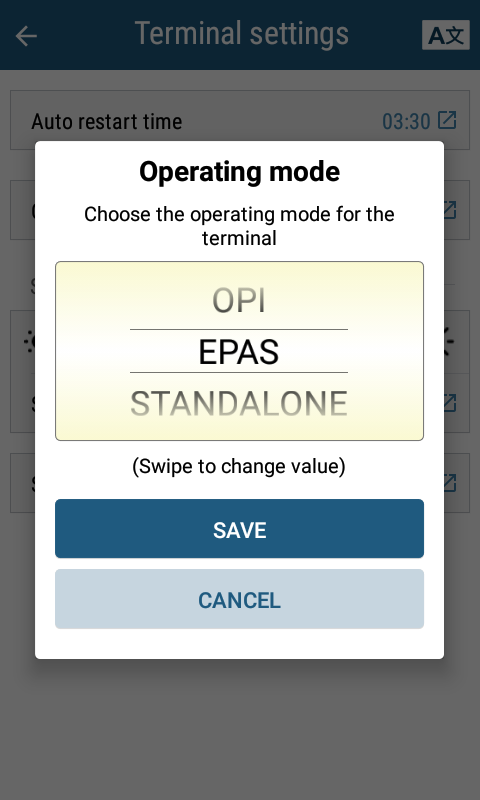

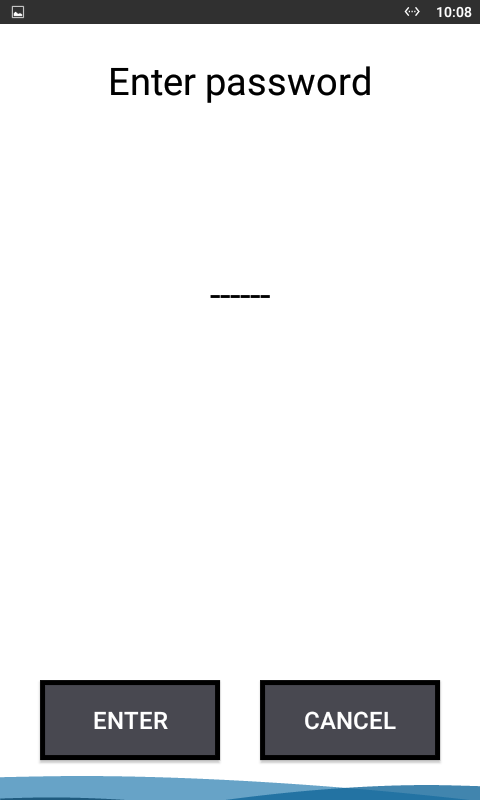

Press on the Operating mode's box on the left, next to the name of the current operating system.	Enter the daily code, and press "Enter" Tips: learn how to retrieve the daily code here.

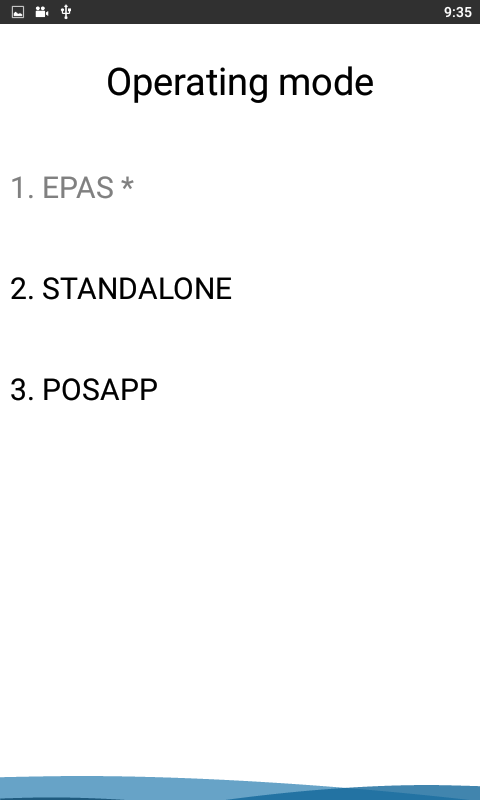

Swipe to the wanted value, then press "Save".	Press on the corresponding number of the wanted operating mode.
The terminal will now restart .	The terminal will now load the wanted operating mode.

Great! If done correctly the terminal should be changed to the desired operating mode.

In this article we will guide on how to change the operating mode of the terminal.

Keep in mind: If you're having difficulties, or are unable to change the operating mode, please contact us at support.

PA Version ≥2.0.13

PA Version <2.0.13

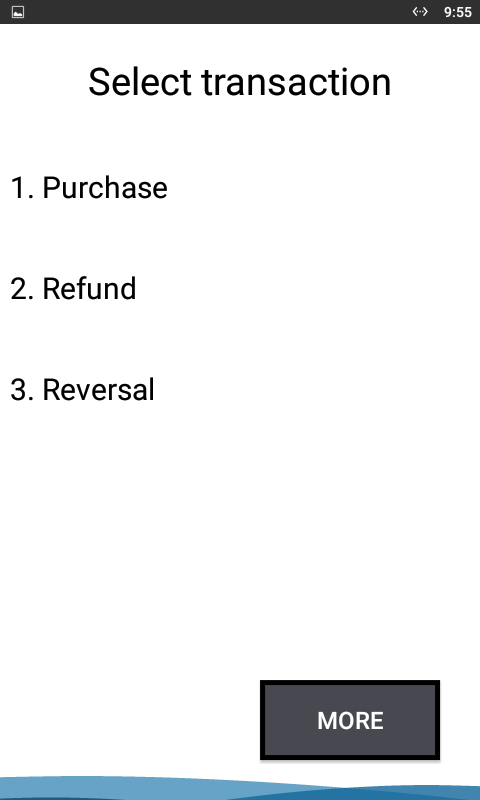

Starting from the transaction screen, tap "MORE".

Same steps as ≥ 2.0.13

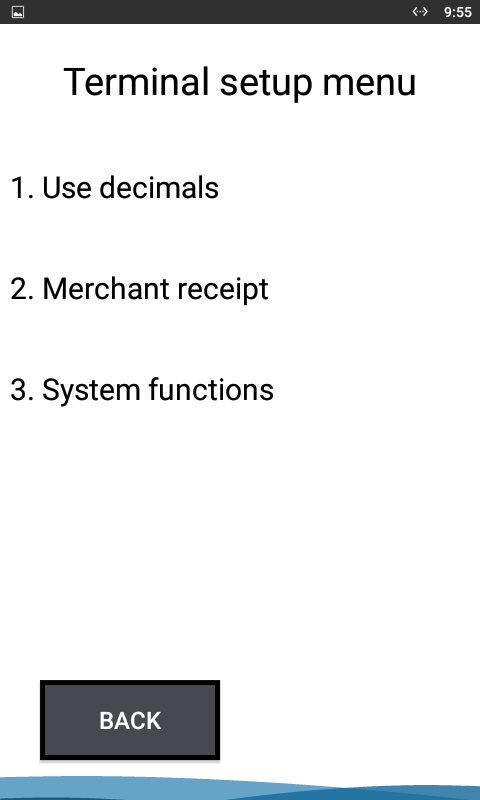

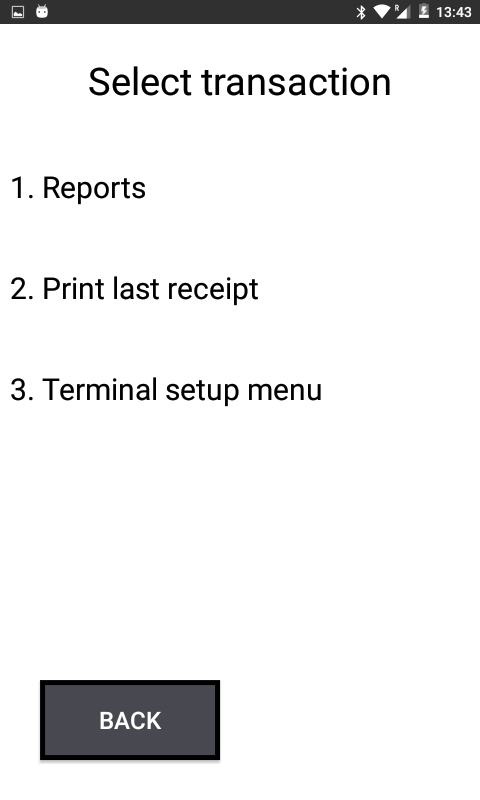

Press the corresponding number on the pinpad to select "Terminal setup menu".

Press "More" to skip the first screen, then the corresponding number on the pinpad to select "System functions".

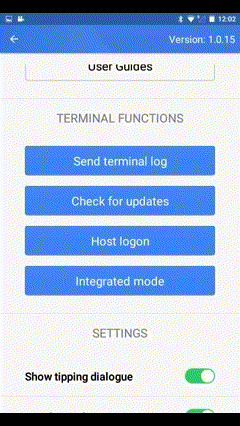

Scroll down to "Payment application menu", and press on it.

In System functions, press on the bottom right arrow [>], until you see "Operating mode". Then, press the corresponding number.

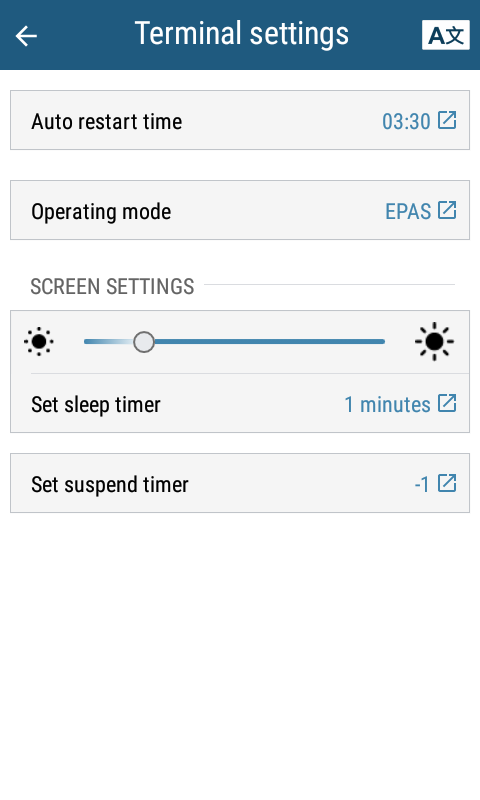

Press on the Operating mode's box on the left, next to the name of the current operating system.

Enter the daily code, and press "Enter".
Tips: learn how to retrieve the daily code here.

Swipe to the wanted value, then press "Save".

Press on the corresponding number of the wanted operating mode.

The terminal will now restart.

The terminal will now load the wanted operating mode.

Great! If done correctly the terminal should be changed to the desired operating mode.

In this article we will guide on how to change the operating mode of the terminal.

Keep in mind: If you're having difficulties, or are unable to change the operating mode, please contact us at support.

PA Version ≥2.0.13

PA Version <2.0.13

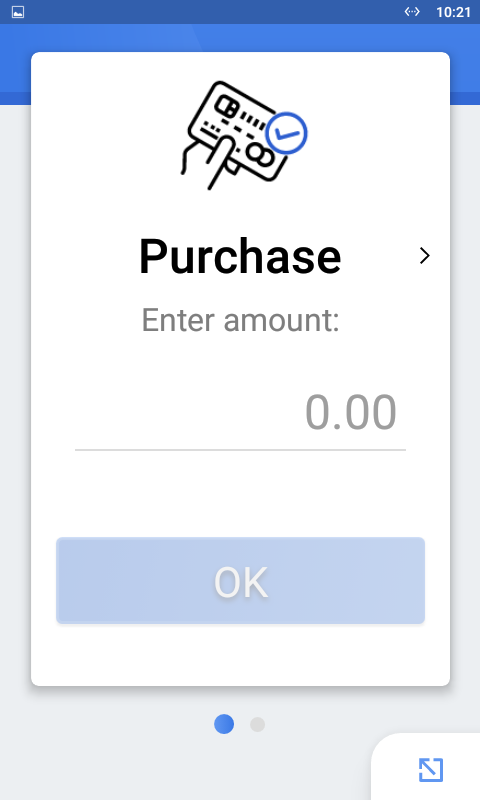

From the screen where a purchase can be started, tap the arrow in the lower right corner.

Same steps as ≥ 2.0.13

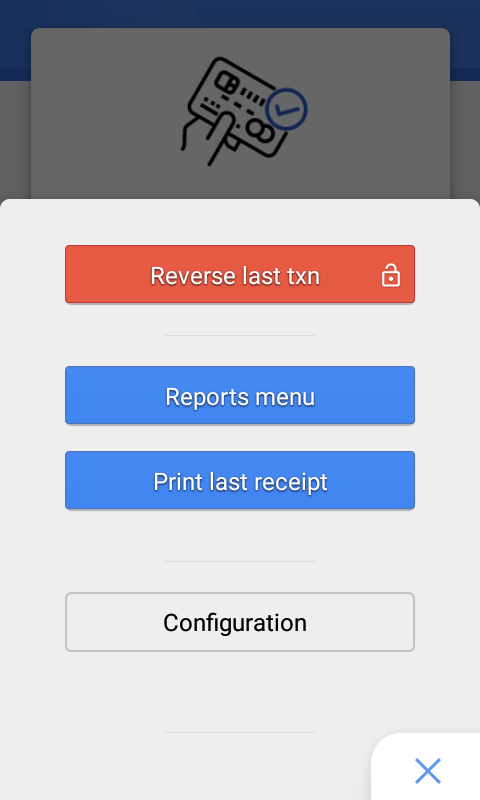

Press on the "Configuration" button.

Scroll down to "Payment application menu", and press on it.

In "System Functions" Menu, scroll down and press on "Terminal settings".

In System functions, press on the bottom right arrow [>], until you see "Operating mode". Then, press the corresponding number.

Press on the Operating mode's box on the left, next to the name of the current operating system.

Enter the daily code, and press "Enter".
Tips: learn how to retrieve the daily code here.

Swipe to the wanted value, then press "Save".

Press on the corresponding number of the wanted operating mode.

The terminal will now restart.

The terminal will now load the wanted operating mode.

Great! If done correctly the terminal should be changed to the desired operating mode.
