POSAPP
In this article we will guide on how to test the connection of the terminal.
Note: This test is available on PA 2.0.13 and forward.

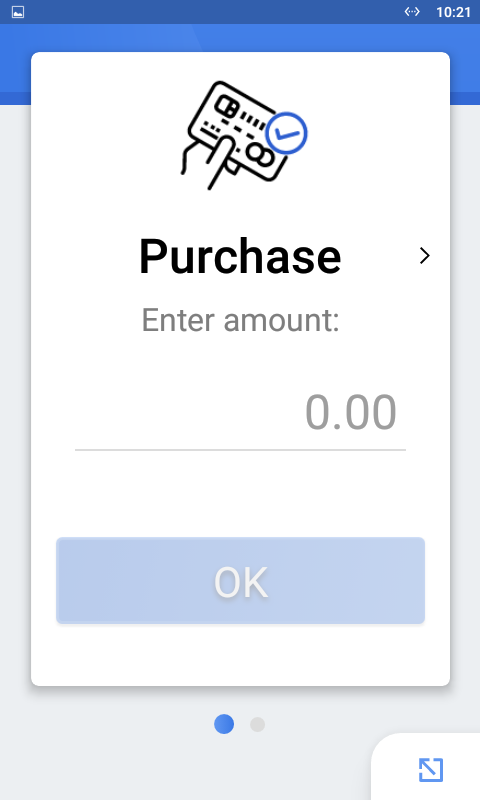

| From the screen where a purchase can be started, tap the arrow in the lower right corner. | |

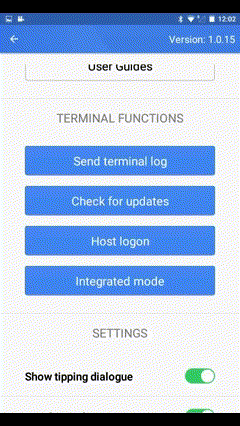

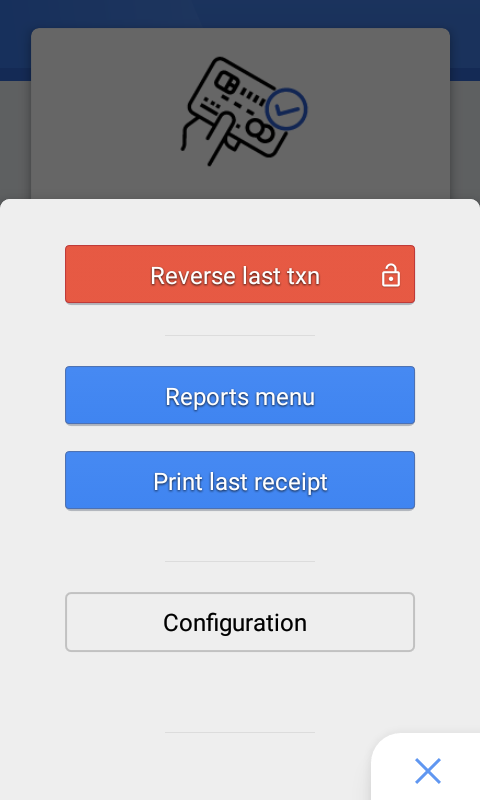

| Press on the "Configuration" button. | |
| Scroll down to "Payment application menu", and press on it. | |
|
|
In "System Functions" Menu, scroll down and press on "Functions". |

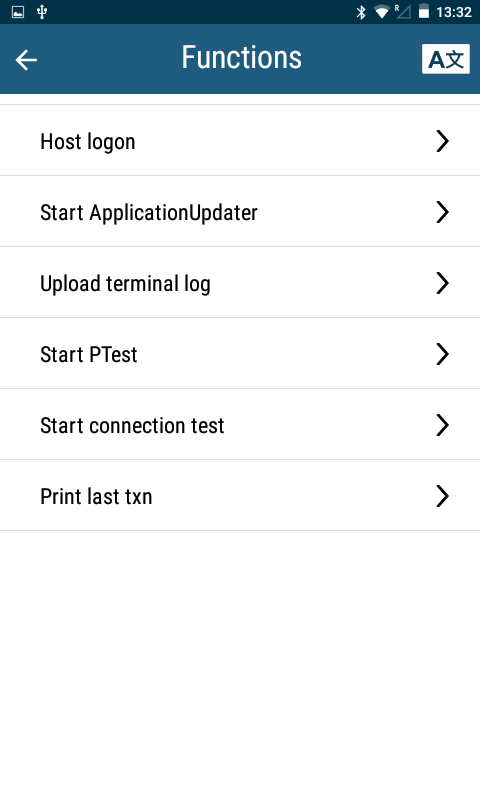

| In the "Functions" Menu, press on "Start connection test". | |
| Press on "Run tests". | |
| The results of the connection test will be presented. |
STANDALONE
In this article we will guide on how to test the connection of the terminal.
Note: This test is available on PA 2.0.13 and forward.

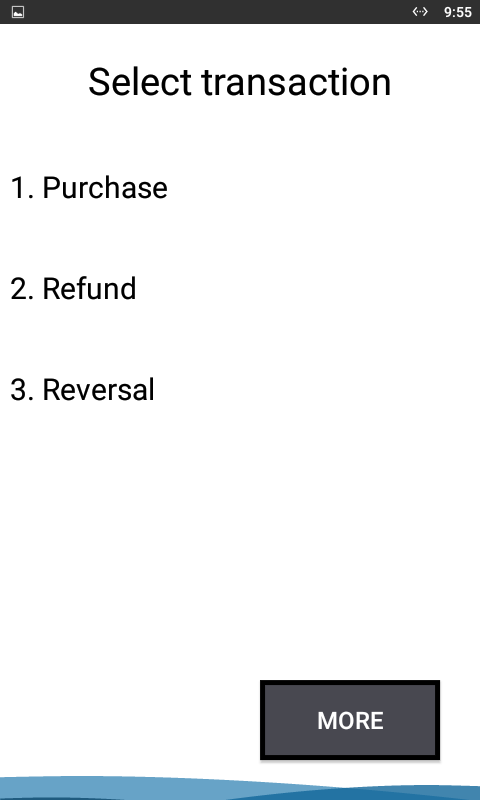

| Starting from the transaction screen, tap "MORE". | |

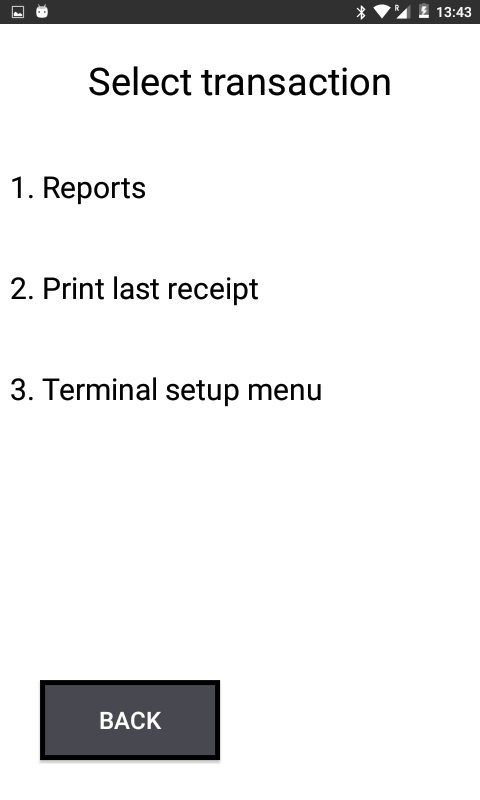

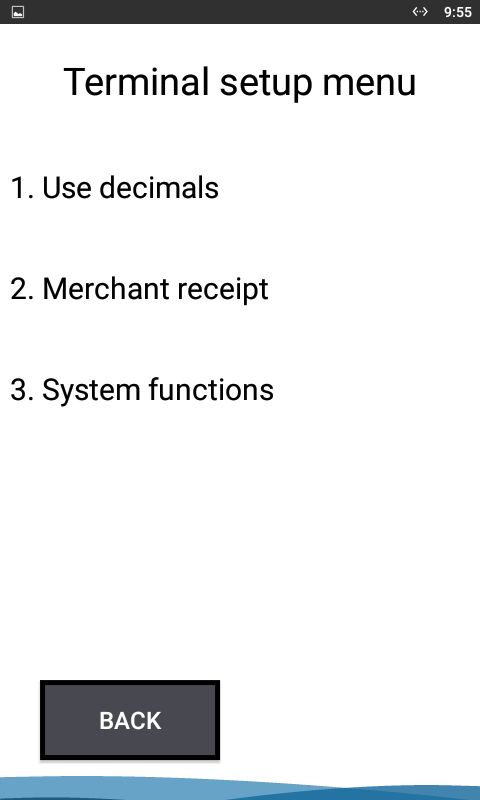

| Press the corresponding number on the pinpad to select "Terminal setup menu". | |
| Press "More" to skip the first screen, then the corresponding number on the pinpad to select "System functions". | |

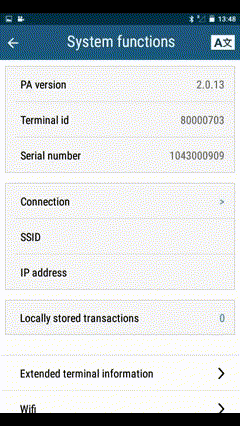

| Scroll down to "Functions", and press on it. | |
| In the "Functions" Menu, press on "Start connection test". | |

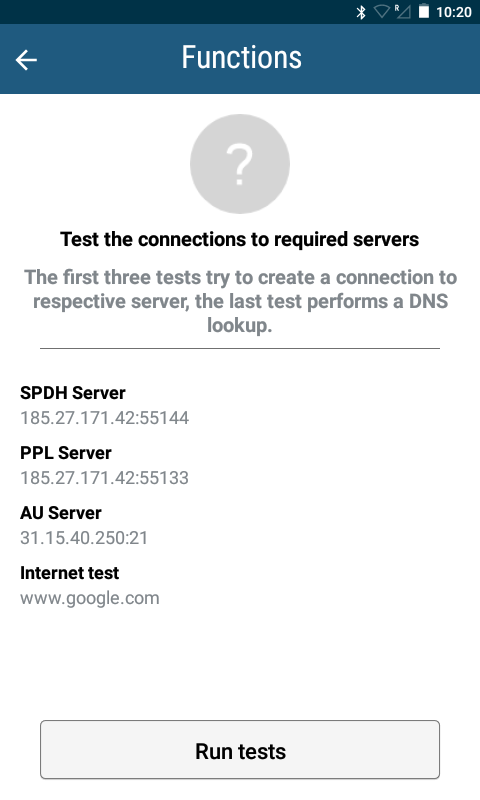

| Press on "Run tests". | |

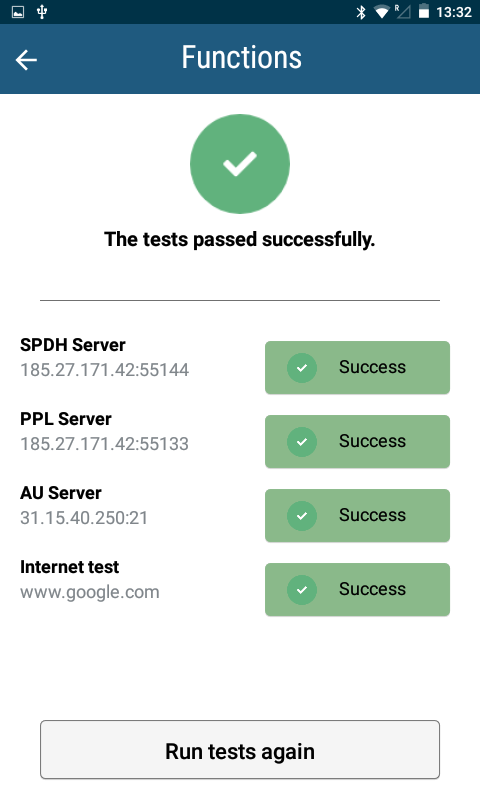

| The results of the connection test will be presented. |
EPAS
In this article we will guide on how to test the connection of the terminal.
Note: This test is available on PA 2.0.13 and forward.

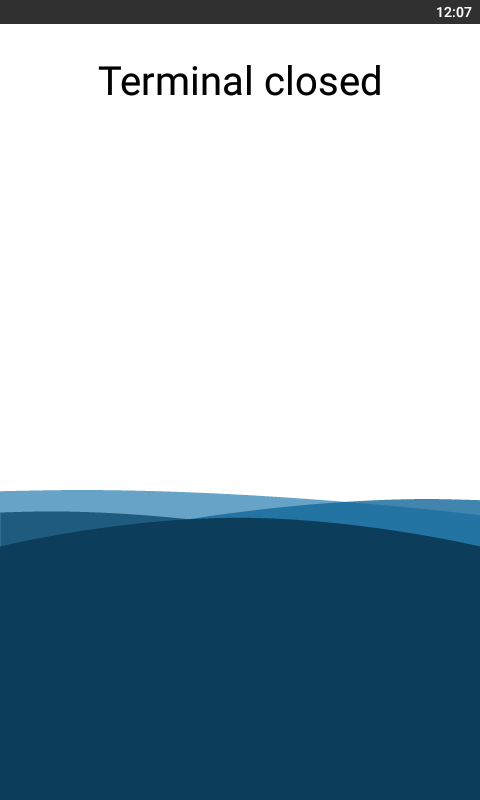

The terminal is in "Welcome" or "Terminal closed" mode. Press "1 4 7 3 6 9" on the pin-pad, this will bring you to the System Functions menu. |
|
| Scroll down to "Functions", and press on it. | |
| In the "Functions" Menu, press on "Start connection test". | |
| Press on "Run tests". | |
| The results of the connection test will be presented. |
